Description

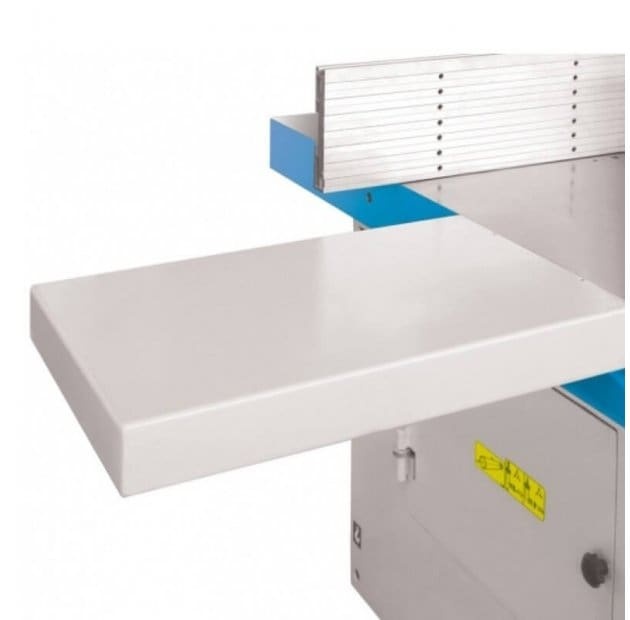

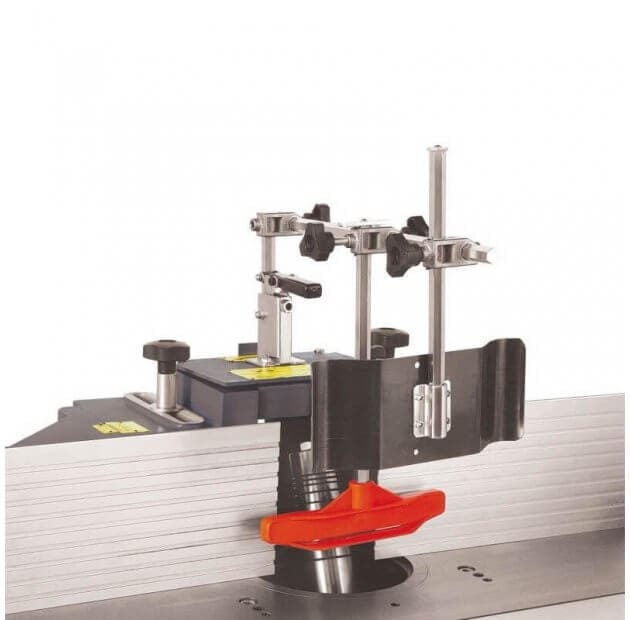

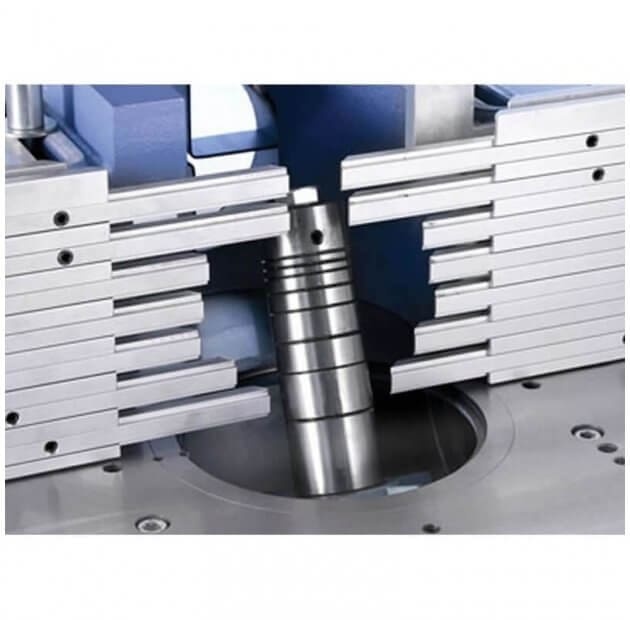

Aluminum sliding table with hardened steel high-precision guides. Large heavy work table made of cast iron. Diameter of the opening in the working table ø190 mm with aspiration under the working table. Electronic reading of the revolutions. Spindle protector with diameter ø180 mm. Mounted device for spindle blocking. 4 speeds of rotation. Spindle tilting to the back.
<table border="1" cellpadding="0" cellspacing="0" style="width:383px"> <tbody> <tr> <td style="width:247px"> <p><strong>STANDARD PERFORMANCE</strong></p> </td> <td style="width:64px"> <strong>T1000S</strong></td> <td style="width:72px"><strong> T1000L</strong></td> </tr> <tr> <td style="width:247px"> <p> </p> </td> <td style="width:64px"> <p> </p> </td> <td style="width:72px"> <p> </p> </td> </tr> <tr> <td style="width:247px"> <p>Working table dimensions, mm</p> </td> <td style="width:64px"> <p>1000 x 550</p> </td> <td style="width:72px"> <p>1000 x 550</p> </td> </tr> <tr> <td style="width:247px"> <p>Sliding table dimensions, mm</p> </td> <td style="width:64px"> <p>1150 x 350</p> </td> <td style="width:72px"> <p>1600 x 350</p> </td> </tr> <tr> <td style="width:247px"> <p>Spindle diameter, mm</p> </td> <td style="width:64px"> <p>Ø 30</p> </td> <td style="width:72px"> <p>Ø 30</p> </td> </tr> <tr> <td style="width:247px"> <p>Spindle tilting</p> </td> <td style="width:64px"> <p style="margin-left:3.6pt">90° / 45°</p> </td> <td style="width:72px"> <p style="margin-left:3.6pt">90° / 45°</p> </td> </tr> <tr> <td style="width:247px"> <p>Vertical movement of the spindle, mm</p> </td> <td style="width:64px"> <p>175</p> </td> <td style="width:72px"> <p>175</p> </td> </tr> <tr> <td style="width:247px"> <p>Working height of the spindle, mm</p> </td> <td style="width:64px"> <p>125</p> </td> <td style="width:72px"> <p>125</p> </td> </tr> <tr> <td style="width:247px"> <p>Max. tool diameter, mm:</p> <p style="margin-left:36pt">- for profiling</p> <p style="margin-left:36pt">- for tenoning</p> </td> <td style="width:64px"> <p> </p> <p>Ø 180</p> <p>Ø 250</p> </td> <td style="width:72px"> <p> </p> <p>Ø 180</p> <p>Ø 250</p> </td> </tr> <tr> <td style="width:247px"> <p>Motor power, kW (HP)</p> </td> <td style="width:64px"> <p>3.0 (4.0)</p> </td> <td style="width:72px"> <p>3.0 (4.0)</p> </td> </tr> <tr> <td style="width:247px"> <p>Revolutions, min-1</p> </td> <td colspan="2" style="width:136px"> <p>1400 / 3500 / 6000 / 8000</p> </td> </tr> <tr> <td style="width:247px"> <p>Weight, kg</p> </td> <td style="width:64px"> <p>390</p> </td> <td style="width:72px"> <p>410</p> </td> </tr> </tbody> </table> <p> </p> <p> </p> <p> </p> <table border="1" cellpadding="0" cellspacing="0" style="width:383px"> <tbody> <tr> <td style="width:247px"> <p><strong>OPTIONS</strong></p> </td> <td style="width:136px"> <p> </p> </td> </tr> <tr> <td style="width:247px"> <p> </p> </td> <td style="width:136px"> <p> </p> </td> </tr> <tr> <td style="width:247px"> <p>Motor power, kW (HP)</p> </td> <td style="width:136px"> <p>4.0 (5.5), 5.5 (7.5)</p> </td> </tr> <tr> <td style="width:247px"> <p>Spindle protector for profiling, mm</p> </td> <td style="width:136px"> <p>Ø 250</p> </td> </tr> <tr> <td style="width:247px"> <p>Integral safety guides, mm</p> </td> <td style="width:136px"> <p>350, 500</p> </td> </tr> <tr> <td style="width:247px"> <p>Clamping device MORI</p> </td> <td style="width:136px"> <p> </p> </td> </tr> <tr> <td style="width:247px"> <p>Tenoning table and tenoning hood, mm</p> </td> <td style="width:136px"> <p>Ø 320</p> </td> </tr> <tr> <td style="width:247px"> <p>Left / right spindle rotation</p> </td> <td style="width:136px"> <p> </p> </td> </tr> <tr> <td style="width:247px"> <p>Extension tables from the left and the right sides</p> </td> <td style="width:136px"> <p> </p> </td> </tr> <tr> <td style="width:247px"> <p>Telescopic fence 900 mm with 2 stops</p> </td> <td style="width:136px"> <p> </p> </td> </tr> <tr> <td style="width:247px"> <p>Spindle diameter, mm</p> </td> <td style="width:136px"> <p>ø1 1/4",ø32, ø35, ø40, ø50</p> </td> </tr> <tr> <td style="width:247px"> <p>Feeder</p> </td> <td style="width:136px"> <p>MX 38, MX 48</p> <div> </div> </td> </tr> </tbody> </table>
